Two additional pistons make a third (intermediate) position possible. The intermediate position is exactly reproducible. To use for multiple-way valves and pig valves. Safety function with spring-centered central position

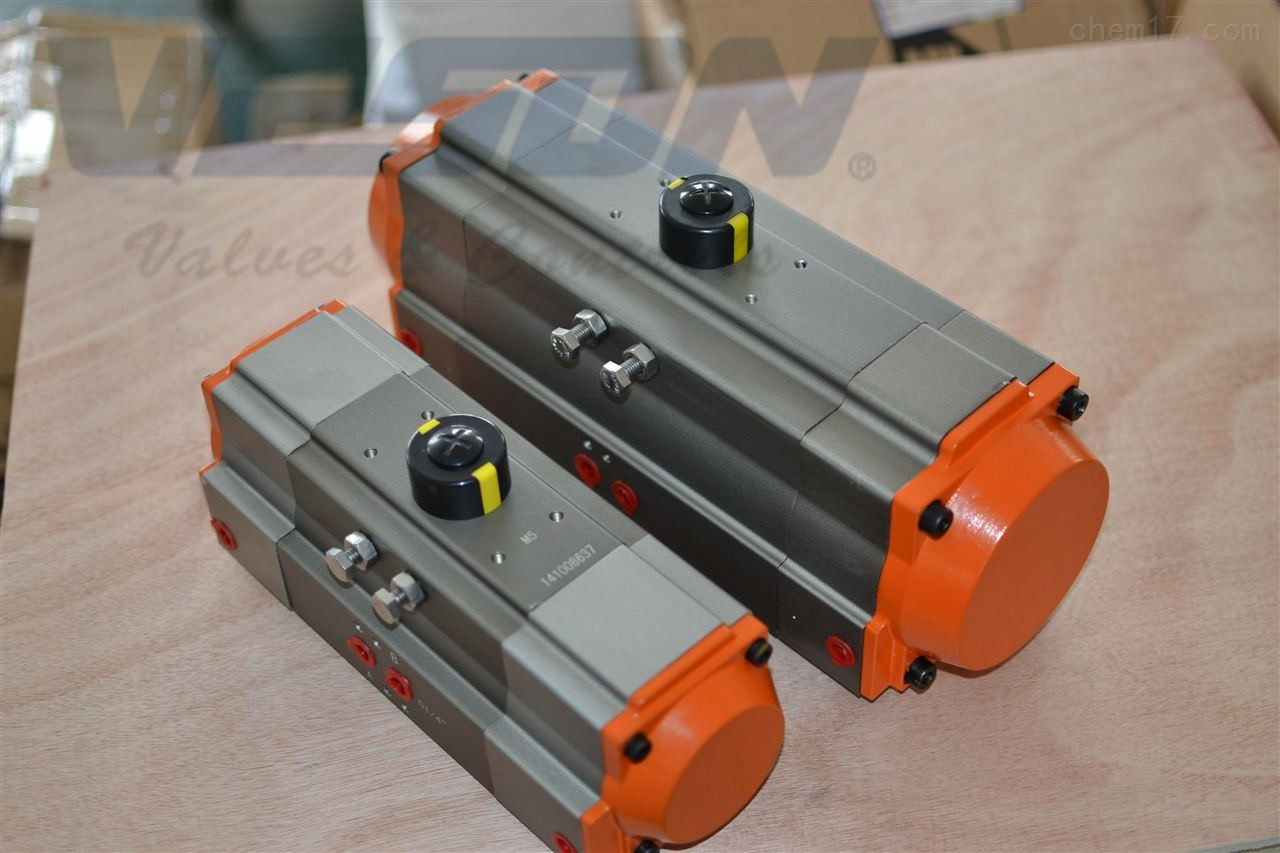

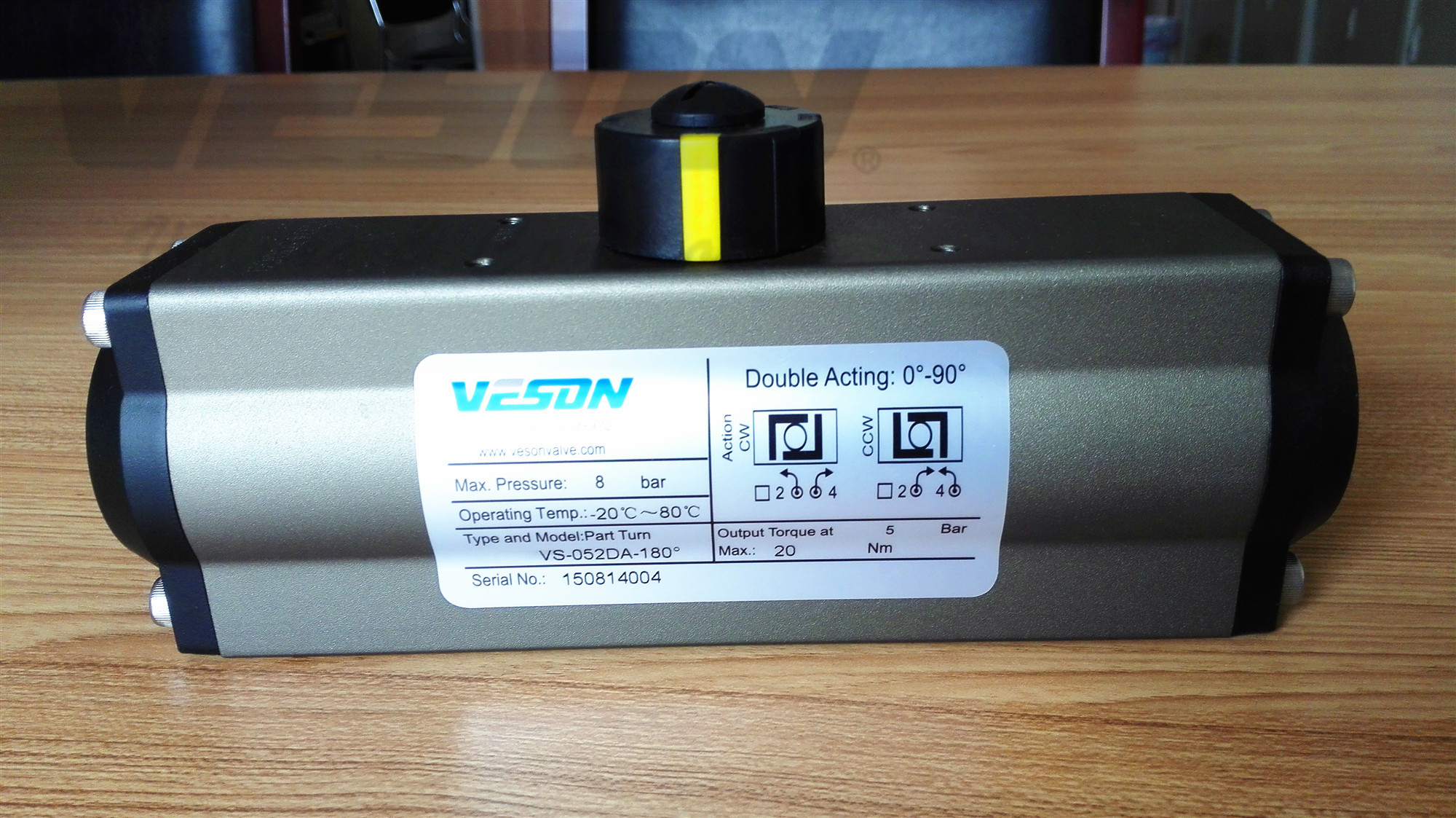

pneumatic twin piston actuator, single-acting and double-acting version with two additional pistons, pivoting angle 90°+ 90° (180°) respectively 120°+ 120° (240°)
valve combinations (preferably 3/2-way) corresponding safety conception respectively requirements.
Our Services
1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lightings we can help your to design and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protect your sales area, ideas of design and all your private information.
Principle of Single Acting Actuator (Spring Return)
CCW
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.
CW
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.
Principle of Double Acting Actuator
CCW
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.
CW
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.
