Knife Gate Slurry Valves NewCon KGV Knife Gate Valve For Slurry Application

MOQ : 1

Payment Terms : T/T

Delivery Time : 8-10 weeks

Packaging Details : plywood case

Contact Now

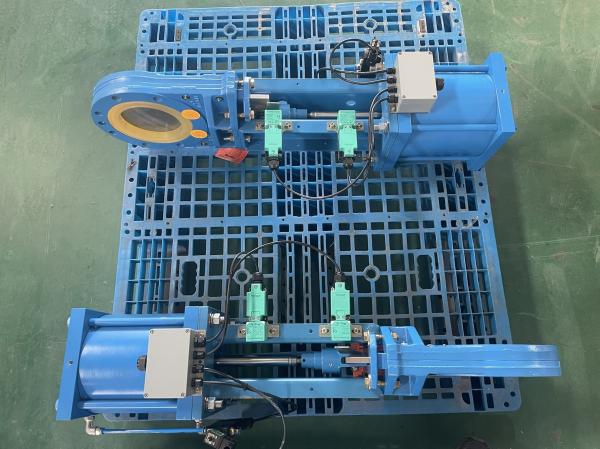

Pneumatic Accessories for NewCon KGV.

NewCon KGV severe duty slurry knife gate valve is designed for either fine or coarse abrasive mineral slurries. The purge-less KGV provides zero leakage to atmosphere, as well as 100% downstream isolation, with the industry’s longest wear life.

2" to 42" ANSI Class 150 Lug/Wafer drill patterns; non-wetted ductile iron body; 304SS, 316SS, 2205, 255, 2507, AL6XN, C276 or 17-4 gate materials; Polyurethane or high temperature polyurethane liners; 150 psig pressure rated up to 28" & 100 psig above

1. Double electric control solenoid valve ASCO: SCG531C018MS 24VDC

2. Pressure reducing valve SMC: AW30-03BG-A

3. Proximity switch: PF

4.With junction box

Product Tags:

Slurry Knife Gate Valves

NewCon KGV Knife Gate Valve

Knife Gate Slurry Valves
